GVUE – HB
DIGITAL BLOOD PRESSURE MONITOR
AUTOMATIC
SPECIFICATION :-
PRODUCT NAME |
ARM AUTOMATIC BLOOD PRESSURE METER |
MEASUREMENT PRINCIPAL |
SOFT CUFF |
MEASURABLE ARM |
ABOUT 220-360mm (8.6~14.2ich) |
MEASUREMENT RANGE |
PRESSURE : 40~300mmHg, PULSE: 40~160TIMES/MINUTE, |
POWER SUPPLY |
6V DC (4 “AA” BATTERIES) |
MEMORY CAPACITY |
2 X 90 SETS OF DATA INCLUDING DATE AND TIME |
INFLATION |
AUTOMATIC INFLATION BY INTERNAL PUMP, AUTOMATIC SPEED DEFLATION SYSTEM CONTROLLED BY INTERNAL ELECTROMAGNETIC VALVE. |
DISPLAY |
PRESSURE, PULSE, DATE, TIME |
HOW TO USE
STEP 1 :- WRAP CUFF AROUND UP ARM.
STEP 2 :- PRESS “START/STOP” BUTTON TO START TESTING.
MEMORY CHECK :- PRESS “M” BUTTON TO VIEW PREVIOUSLY RECORDED MEASURMENTS.
| Name of Each Part | |
 |
 |

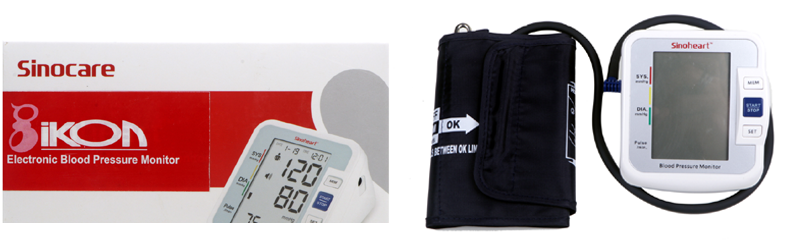

Figure 1— Appearance
| Figure 2 — Display of LCD Note for LCD display:
|
| Specifications | ||
| Product Description | Arm type Fully Automatic Digital Blood Pressure Monitor | |
| Model | SIBP 1034 | |
| Display | LCD Digital Display Size: 84.1mm x 55.Imm (3.31" x 2.17") | |
| Measurement Method | Oscillometric Method | |
| Measurement Range | Pressure | Ommllg — 300mmllg |
| Pulse | 30 to 180 Beats/Minute | |
| Measurement Accuracy | Pressure | 3mmllg |
| Pulse | ± 5% | |
| Pressurization | Automatic Pressurization | |
| Memory | Memories in Four Groups with Date and Time | |
| Function | Low Battery Detection | |
| Automatic Power Off | ||
| Power Source | 4 AA batteries or Medical AC Aadapter(DC6.0V, 1000mA) (recommended not provided) | |
| Battery Life | Approximately 2 months at 3 tests per day | |
| Unit Weight | Approx.405g (14.30 oz.)(excluding battery) | |
| Unit Dimensions | Approx.110 x 155 x 70mm (4.33" x 6.10" x 2.76" )(L x W x H) | |
| Operating Resonance | C:50.2c1B | |
| Cuff Circumference | 22.0cm — 36.0 cm (8.6" — 14.2") | |
| Operating Environment | Temperature | St — 40t (41 T-104 T) |
| Humidity | <85% RH | |
| Pressure | Atmospheric Pressure | |
